Using the American HELLER hot air circulation heating method, efficient pressurized accelerating air duct, greatly improve the circulation of hot air flow, rapid heating (about 20 minutes), high heat compensation efficiency, can be high temperature welding and curing; Each temperature zone is equipped with an independent temperature sensor to monitor and compensate the temperature balance of each temperature zone in real time; Special pressurized air structure and special-shaped heating wire design, no noise, no vibration, with a very high heat exchange rate, the temperature difference between the BGA bottom and the PCB board is very small, more in line with the strict requirements of the lead-free process, especially for the difficult welding requirements of lead-free products.

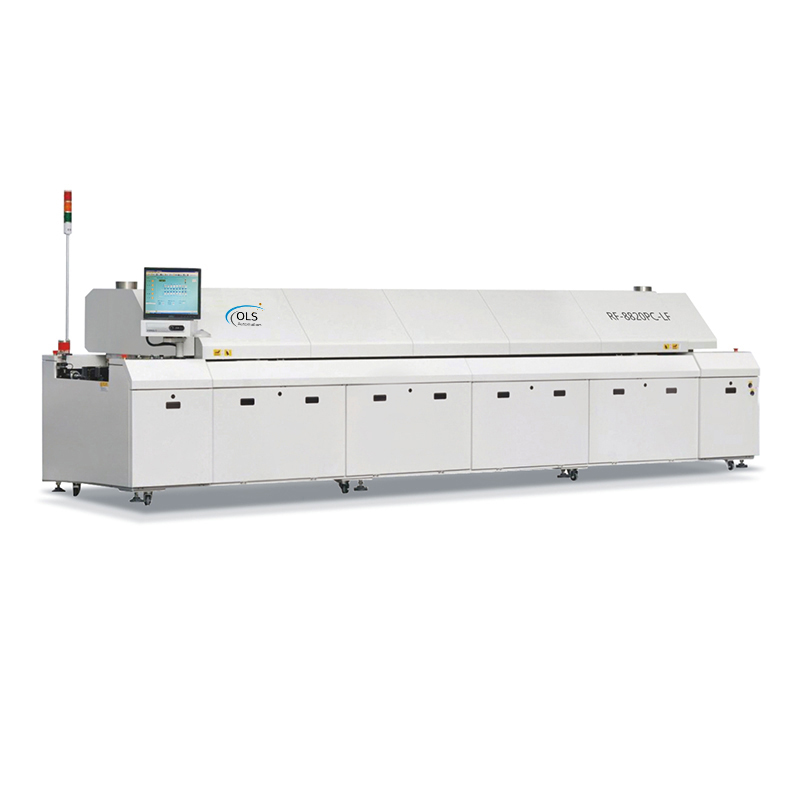

| Model： | OLS-RF8820PC |
| Number of heating zones | up 8/down 8 |
| Length of heating zone | 3140MM |
| heating method | Square heating wire heating, pressurized air duct, point-to-point variable frequency motor heat exchange mode, variable frequency motor drive |
| Number of cooling zones | 2 |
| Maximum width of the mesh belt | 500MM |
| Transport direction | Left → Right (or right → left) |
| Conveyor belt height | 900±20mm |
| move mode | Net drive + Guide rail (optional) |
| Conveyor belt speed | 0-1800mm/min |
| Power | 3Φ、380V、50HZ |
| starting power | 36kw |
| Normal working power | 7KW |
| heating up time | 20 minutes |
| Temperature control range | ～320℃ |
| Temperature control mode | Temperature meter closed loop control |
| Temperature control accuracy | ±1-2℃ |
| abnormity warning | Temperature anomaly |
| Dimensions (length * width * height) | 5000×1300× 1550mm |
| machine weight |  1800KG |
