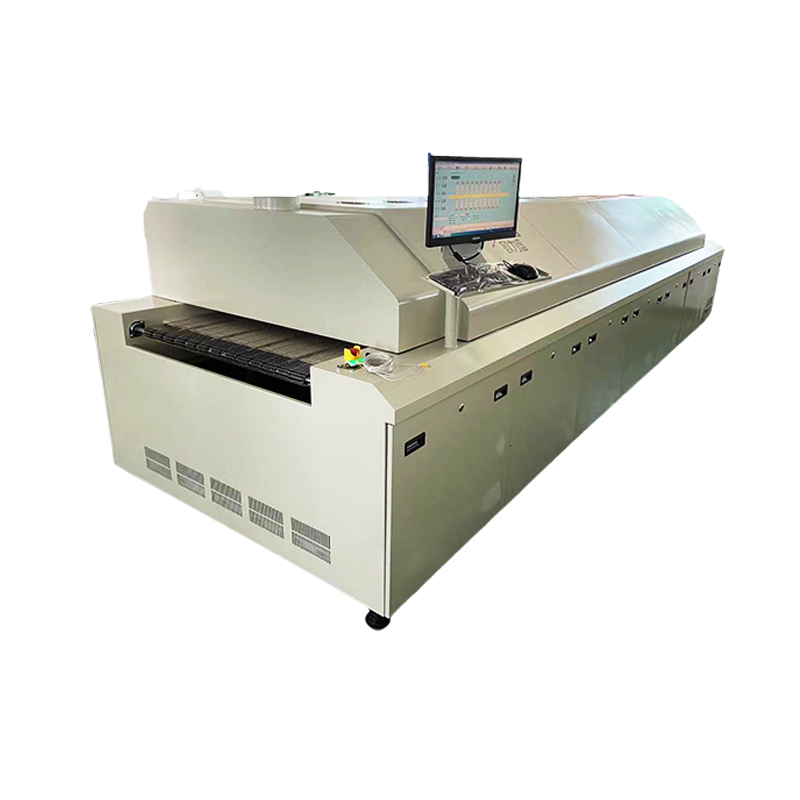

| Model： | OLS -RF8830PC |
| Number of heating zones | up 8/down 8 |
| Length of heating zone | 3100MM |
| heating method | Square heating wire heating, pressurized air duct, point-to-point variable frequency motor heat exchange mode, variable frequency motor drive |
| Number of cooling zones | 2 |
| Maximum width of the mesh belt | 800MM |
| Transport direction | Left → Right (or right → left) |
| Conveyor belt height | 900±20mm |
| move mode | Net drive + Guide rail (optional) |
| Conveyor belt speed | 0-1800mm/min |
| Power | 3Φ、380V、50HZ |
| starting power | 50kw |
| Normal working power | 9KW |
| heating up time | 20 minutes |
| Temperature control range | ～300℃ |
| Temperature control mode | Temperature meter closed loop control |
| Temperature control accuracy | ±1-2℃ |
| abnormity warning | Temperature anomaly |
| Dimensions (length * width * height) | 5000×1600× 1550mm |
| machine weight |  2200KG |
