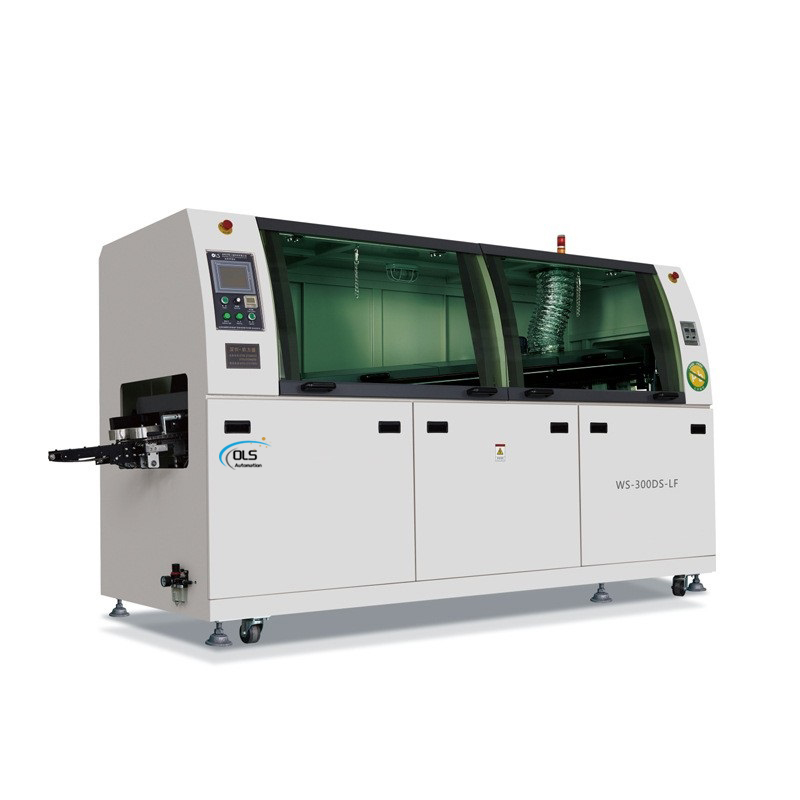

1, one Body streamlined appearance design, the use of spray process does not drop paint, beautiful and generous, durable.
2, three independent 1.5 meters preheating zone, 2 hot air + infrared preheating, so that the PCB flux activity can be uniformly excited, obtain good welding effect.
3, special titanium chain claw, non-stick tin, no deformation, long life.
4, two observation Windows, beautiful appearance, easy to operate and maintain.
5, the tin furnace chain drives the overall lifting mode, which is more conducive to the level of the tin furnace and more convenient for lifting
6, equipped with cooling module, temperature compensation module, suitable for lead-free welding and a variety of process requirements
7, tin furnace with adjustable nozzle design; The oxidation amount of tin slag is very low, the liquid tin flow design principle is used to reduce the impact oxidation amount of tin, and the crest can be adjusted with the width and narrowness of the PCB board, which greatly reduces the oxidation amount of tin when welding the PCB small board, and the adjustable distance is 80-300MM.
8, the transmission mechanism adopts precision modular design, accurate transmission, long life, easy maintenance.
9, rosin spray box stainless steel, rosin spray device can be pulled out, and removable, easy to clean and maintain.
10, isolated spray device, flux smoke from the special air duct discharge.
11, powerful parameter library function, all kinds of PCB process parameters can be called and operated on demand.
12, the use of touch screen + Germany Siemens PLC control system to ensure that the system has reliability and stability.
13, can be automatically switched on and off according to the date, time and temperature control parameters set by the user.
14, the heating temperature adopts PID closed-loop control, temperature control is stable and reliable.
15, closed-loop automatic tracking spray system, spray width and spray time automatic adjustment, and can be set as needed to advance and extend the spray time.
16, set up economic operation, over the plate automatic wave, to reduce the amount of tin oxidation to a greater extent.
17. Optional automatic flux adding mode, optional flow meter, optional air knife, optional tin knife.
